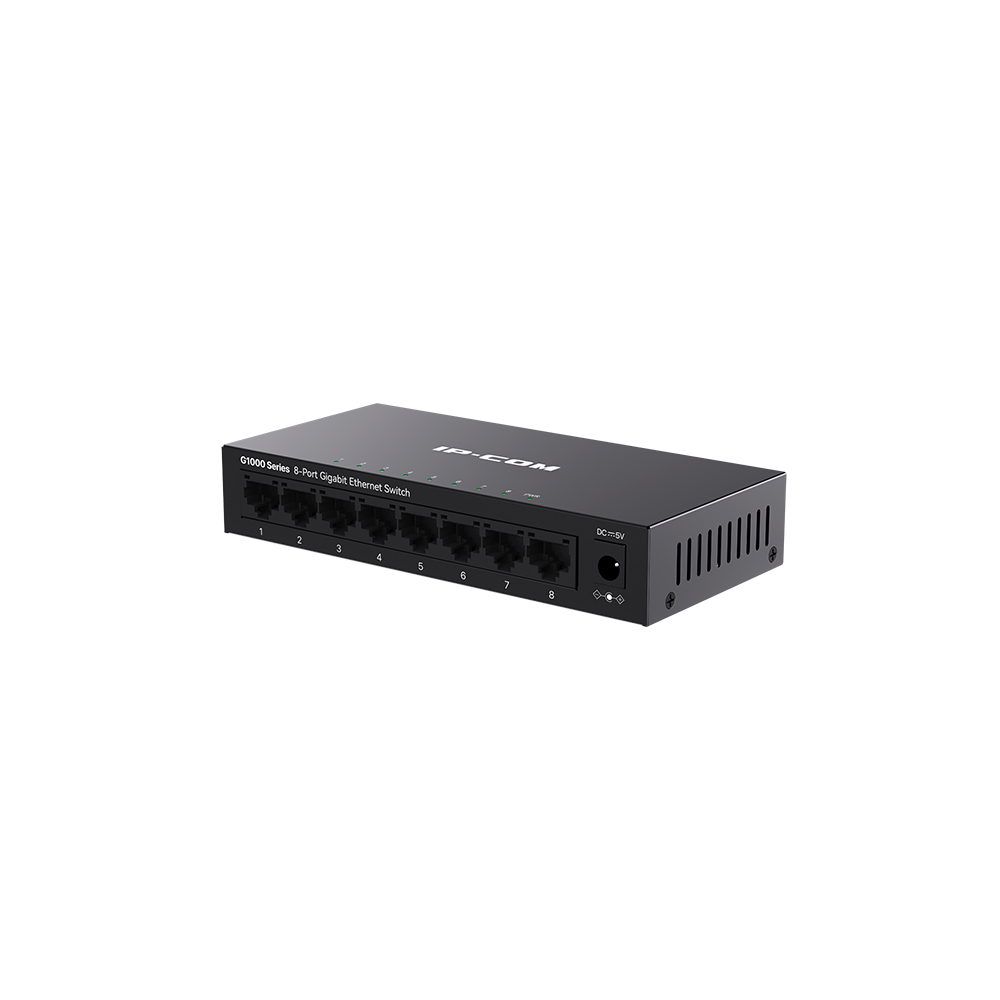

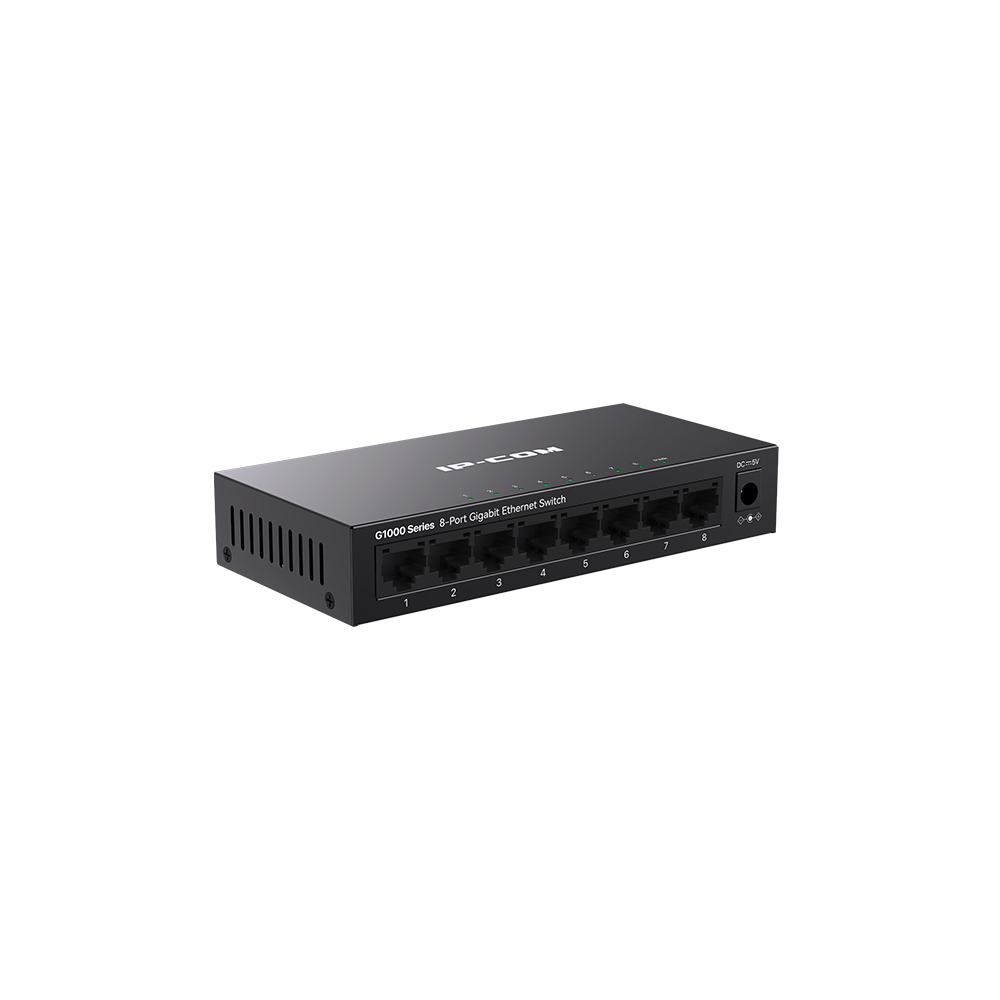

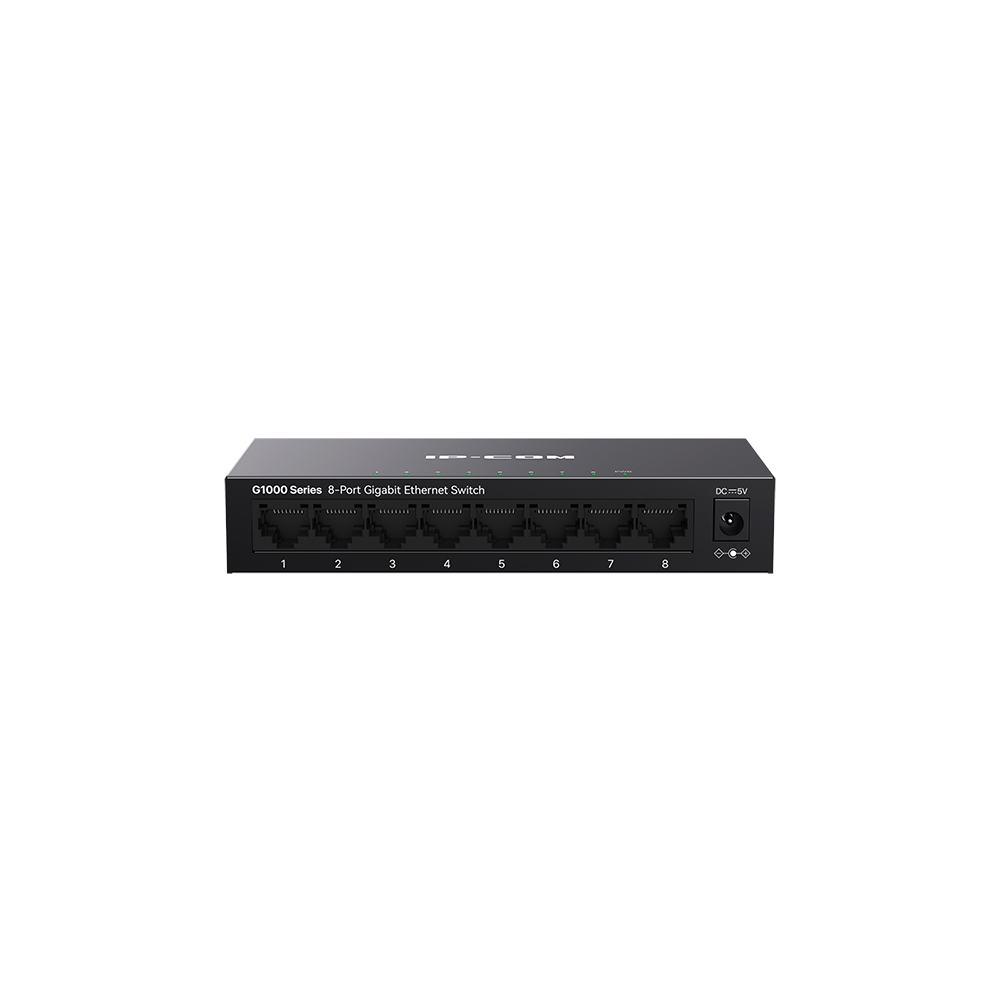

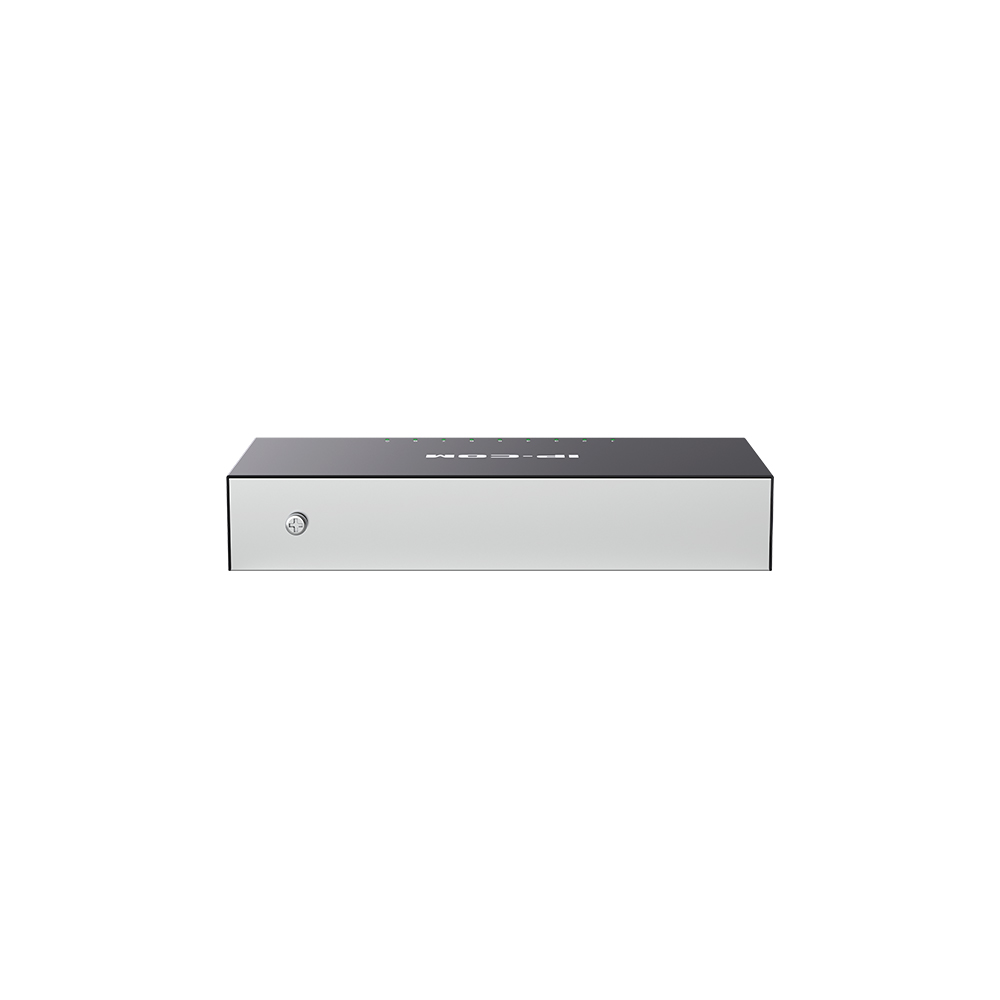

G1008M v2.1

SKU: G1008M v2.1

8-Port Gigabit Ethernet Switch

  • Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
  • 8*10/100/1000 Mbps auto-negotiation RJ-45 ports
  • Up to 16 Gbps backplane bandwidth and non-blocking wire-speed forwarding
  • Power and port status LED indicators for fault detection
  • All metal housing, desktop and wall mounting

33,00 €

Add to wishlist
Add to compare
14 People watching this product now!

Fast Shipping

Carrier information

Best quality products

Only best

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Description

G1008M  v2.1  Overview

G1008M is a high-performance 8-Port Gigabit Ethernet Switch designed by IP-COM for such high-speed cascading scenarios as small/medium-sized video surveillance and office network of SMEs. With mini steel housing, the switch is excellent in heat dissipation. Offering 8*10/100/1000 Mbps auto-negotiation ports, the switch speeds up the transmission rate by 10 times, facilitating the transmission of large files and thus effectively solving such issues as video latency and scene loss in HD video surveillance. G1008M is easy to install either on a desktop or on a wall, without further configuration thanks to the plug and play feature, which is your ideal choice to improve network performance.

All Gigabit

The switch provides 8 gigabit ports, 10 times faster, ensuring smooth transmission of large files and videos.

DC 5-12V Power Input

The switch supports the power input of DC 5-12V, suitable for centralized power supply or on-site monitoring power supply.

Wall Mounting, Plug and Play

The switch supports both desktop and wall mounting, supports plug and play, thus easy for you to use.

Steel Housing, Stable Operation

The switch has a tough housing made of high quality steel, which is designed for excellent heat dissipation, ensuring stable operation and prolonging its lifespan. It is a reliable choice for outdoor video surveillance.



SPECIFICATIONS

Hardware specifications
Network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
LED indicators 1* Power, 8* Link/Act
Fixed ports 8*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Forwarding mode Store-and-forward
Switching capacity 16Gbps
Packet forwarding rate 12.00Mpps
Switching buffer 192KB
MAC address table 8K
Input voltage Input: AC:190-240V 50/60Hz DC:5-12V
Dimensions 140.0mm×66.5mm×25.3 mm(L x W x H)
Power Consumption Max:<2.5W
Environment Operating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing
Certificates FCC、CE、RoHS
