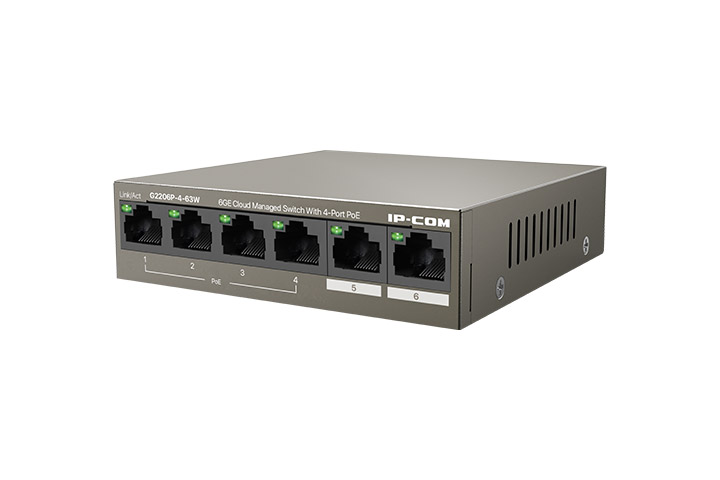

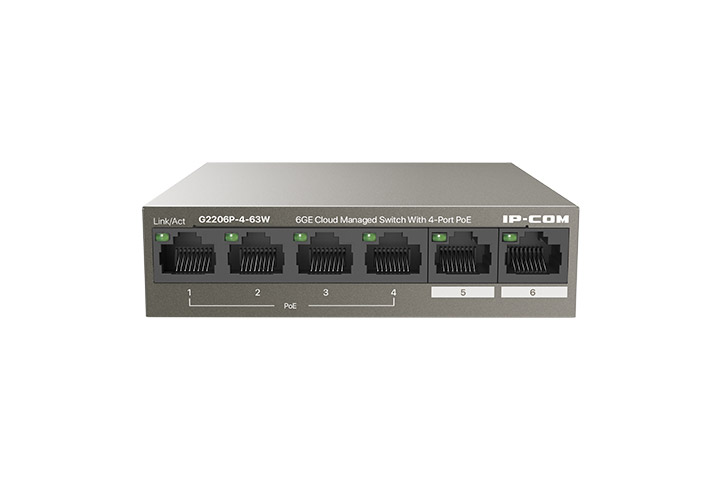

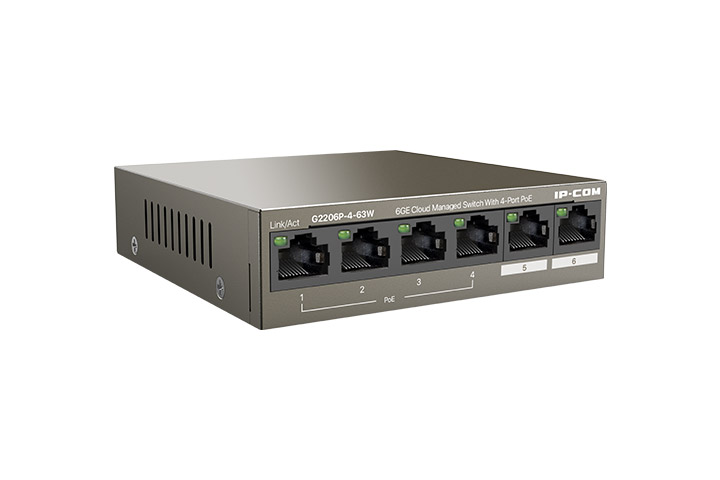

G2206P-4-63W Overview
G2206P-4-63W is a smart cloud-managed PoE switch independently designed by IP-COM. The switch provides 4 gigabit standard PoE ports with a maximum PoE power output of 58 W. Besides, the switch can be managed through both the IP-COM ProFi Cloud web UI and ProFi App, realizing easy and efficient network maintenance at a lower cost.
Cloud Management
The switch can be managed through both the IP-COM ProFi Cloud web UI and ProFi App. You can scan the QR codes on the switches to add them in batches for cloud management. The cloud platform will automatically generate a visible network topology for you to view the operation status of each device in a project anytime and anywhere.
Remote PoE Restart
PoE power supply of ports can be remotely restarted through the ProFi App, solving the problem of fake crash of cameras in security scenarios.
Double Uplink Ports
The switch provides 2 gigabit uplink Ethernet ports, satisfying various cascading scenarios.
Abundant Management Features
The switch offers network extension up to 250 m, QVLAN, VLAN transparent transmission, traffic statistics, loop guard, MAC address binding, DHCP Snooping and other functions, suitable for various scenarios of network deployment.
SPECIFICATIONS
| Hardware specifications | |
|---|---|
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1q, IEEE802.3af, IEEE802.3at |
| LED indicators | One Link/Act LED indicator for each port One PWR LED indicator for each device One SYS LED indicator for each device |
| Fixed ports | 4 × 10/100/1000 Base-T Ethernet ports (PoE & Data) 2 × 100/1000 Base-T Ethernet port (Data) |
| Lightning protection | Port: 6 kV Power supply: 6 kV |
| Forwarding mode | Store-and-forward |
| Switching capacity | 12 Gbps |
| Packet forwarding rate | 8.9 Mpps |
| Switching buffer | NA |
| MAC address table | 2 K |
| PoE Power Supply | IEEE 802.3af/at standards PoE power supply on ports 1-4 Voltage of cores 1, 2, 4, 5 is +, and cores 3, 6, 7, 8 is – |
| Input voltage | 100 – 240V AC 50/60Hz |
| Dimensions (L x W x H) | 100 mm × 100 mm × 26 mm |
| Total Power Consumption | Total power consumption: <63 W Maximum PoE output: 58 W |
| Environment | Operating temperature: 0°C – 45°C Storage temperature: -40°C – 70°C Operating humidity: (10% – 90%) RH, non-condensing Storage humidity: (5% – 90%) RH, non-condensing |
| Certificates | FCC, CE, RoHS |
| Software features | |
| PoE Management | Support dynamic display of PoE consumption power and PoE remaining power Support PoE ports on and off |
| Security Features | Support whitelist binding of MAC addresses, ports and VLAN Support port isolation |
| VLAN | Support VLAN transparent transmission Support IEEE 802.1q VLAN |
| DHCP | Support DHCP Client Support DHCP Snooping |
| Port Properties | Support port flow control Support port isolation Support N:1 port mirroring Support port statistics of received and transmitted packets, conflict packets and CRC error packets |
| Rate Limit | Support ingress and egress rate limits on ports |
| Loop Guard | Support loop detection and guard on each port |
| Storm Control | Support storm control on ports |
| Upgrade, Import and Export | Support HTTP upgrade Support configuration import and export |
| Management and Maintenance | Support ProFi App management Support ProFi Cloud web UI management Support local web UI management Support ping test |
