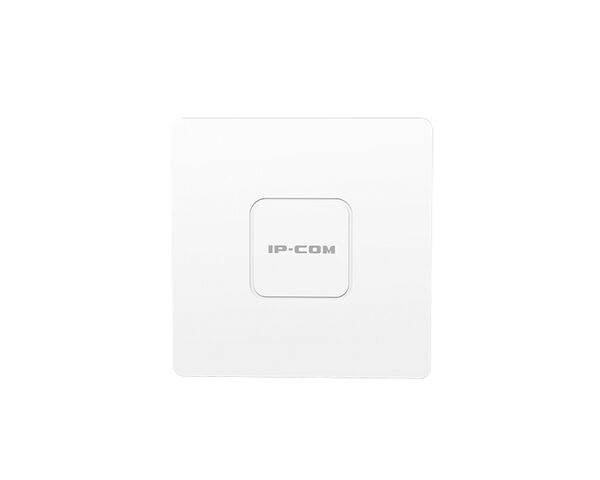

W63AP
W63AP 92,00 €
Back to products
PSE30G-AT
PSE30G-AT    23,00 €
Click to enlarge

G2210P-8-120W

SKU: G2210P-8-120W

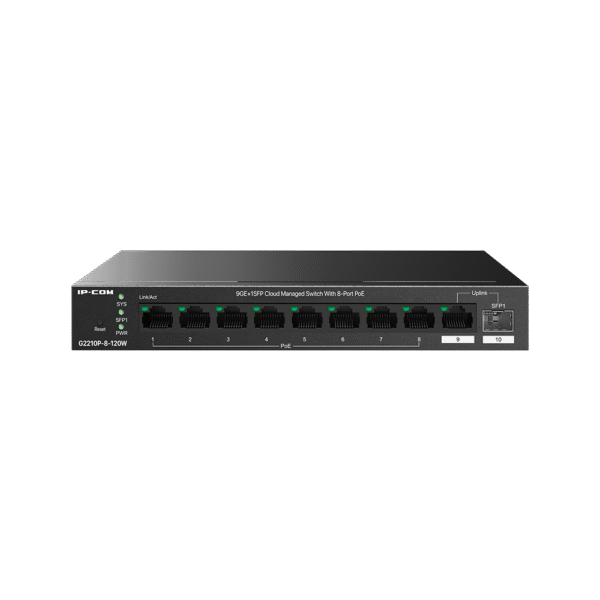

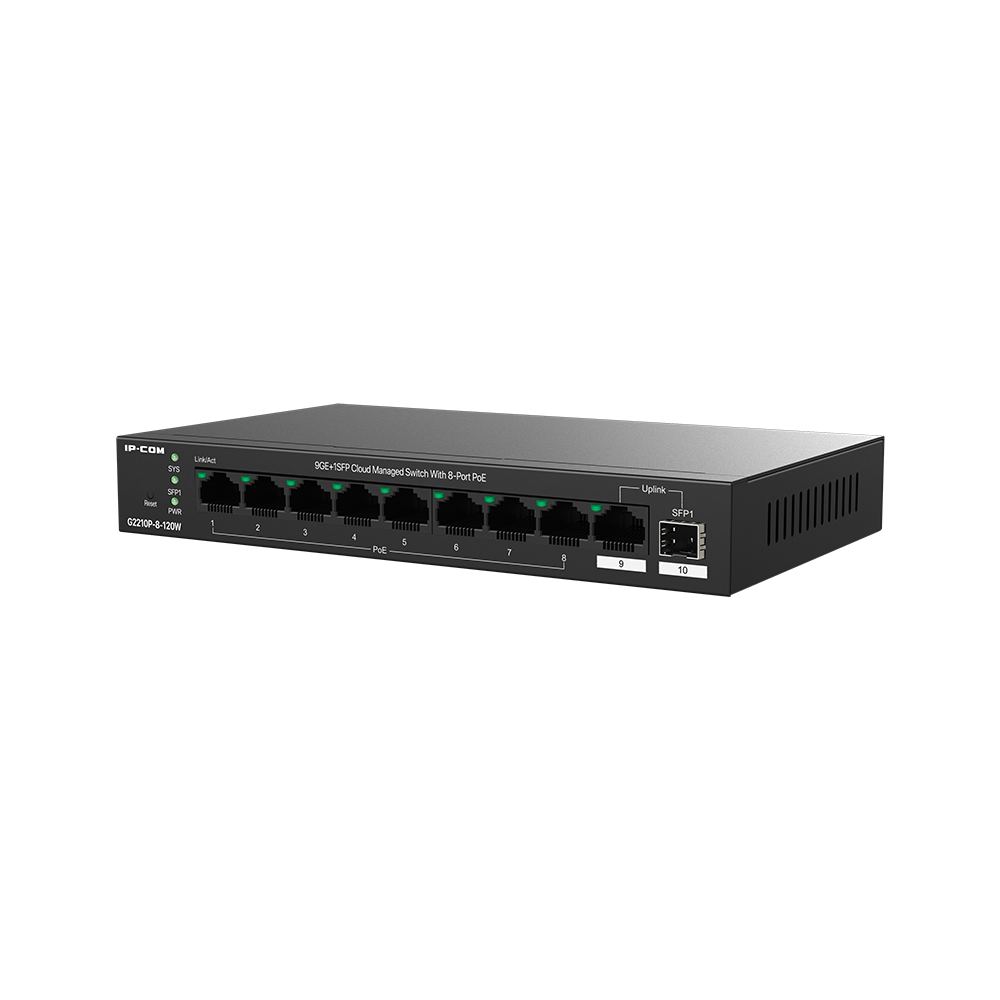

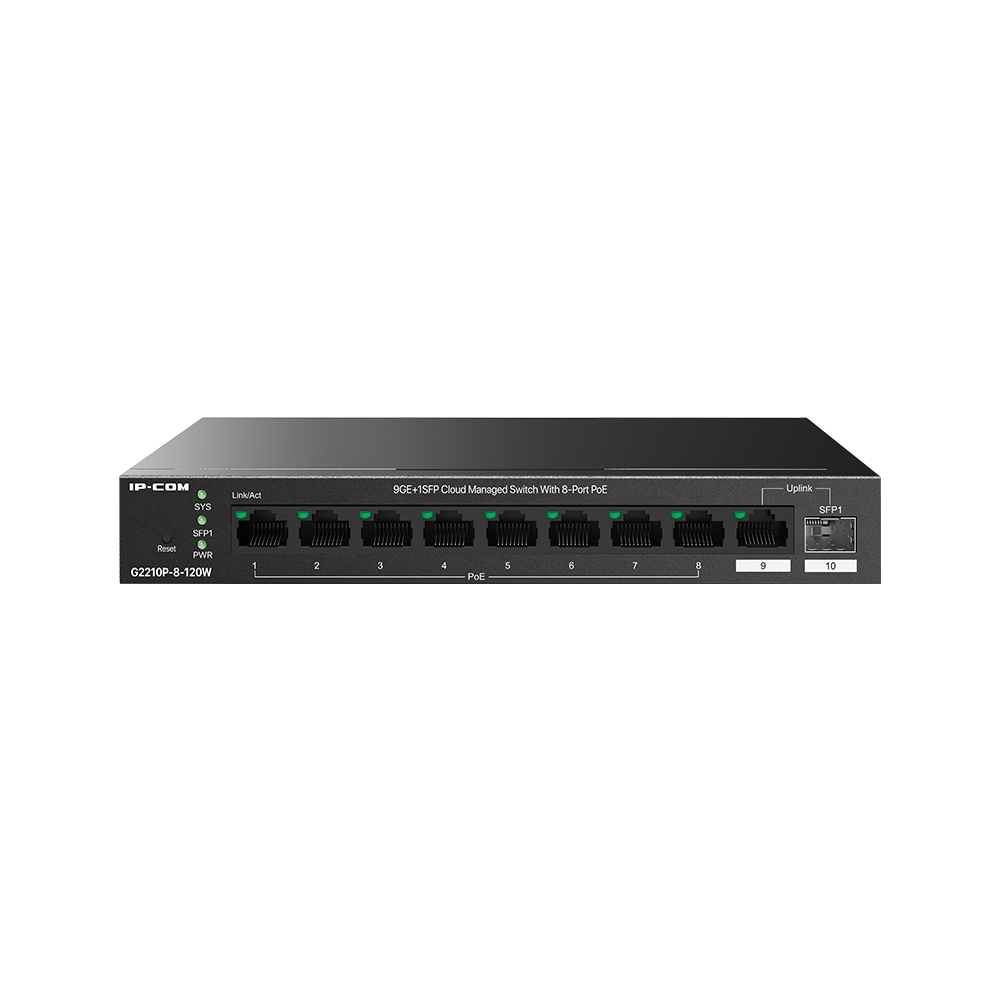

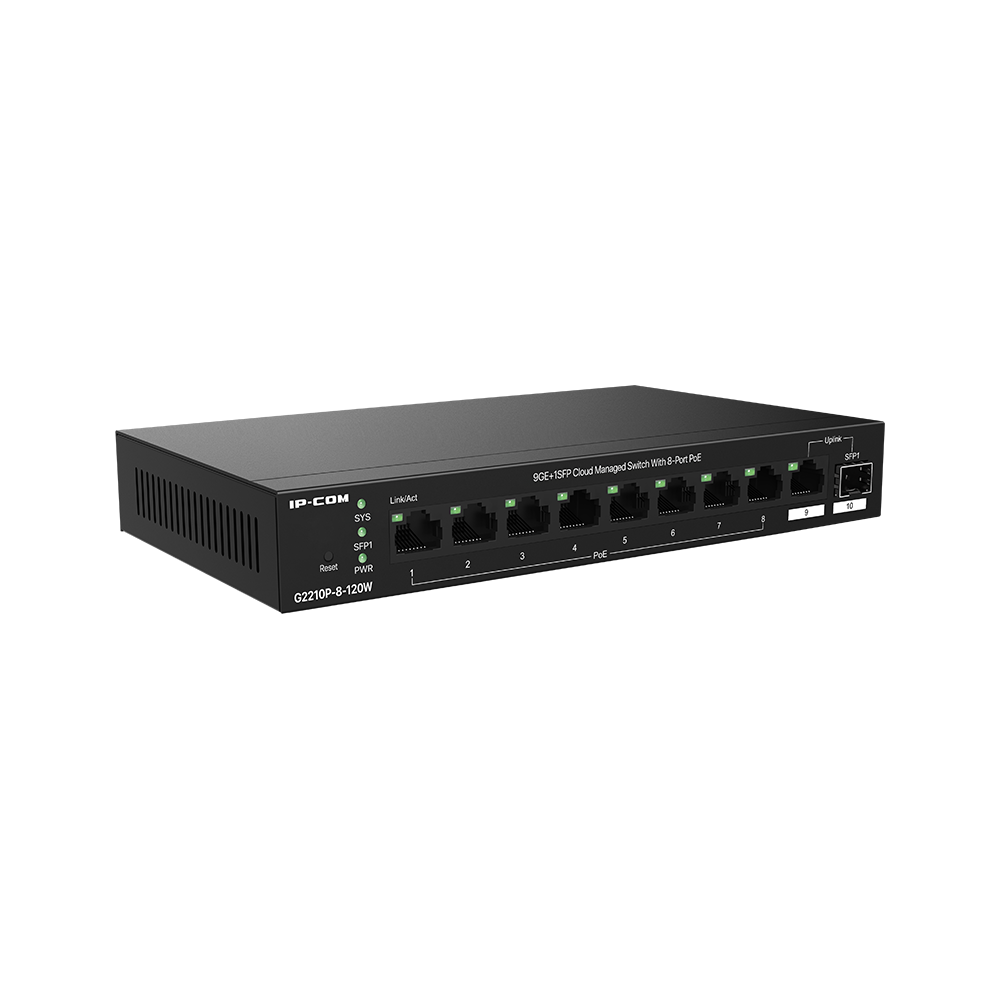

9GE+1SFP Cloud Managed PoE Switch

  • Comply with IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3af,IEEE802.3at,IEEE802.3x,IEEE802.3z,IEEE802.1p,IEEE802.1q standards
  • 9*10/100/1000 Base-T Ethernet ports, 1*1000 Base-X SFP optical ports
  • 8K MAC address table and MAC address auto learning
  • 8 PoE ports,single port output power 30W,Total power budget 110W
  • 20Gbps non-blocking wire-speed forwarding
  • Web platform remote management,mobile APP management
  • 4M large cache
  • Support QVLAN,DHCP Snooping,anti-loop,PoE timing,watchdog,etc.

150,00 €

Add to wishlist
Add to compare
11 People watching this product now!

Fast Shipping

Carrier information

Best quality products

Only best

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Description

Easier Management Better Experience

G22 Series Cloud Managed Switch
Tenda

Supports Cloud WEB platform management and APP management

IP-COM cloud management switch provides a simpler, more intelligent, and secure remote management method that can be deployed across the entire network without command line debugging.
Tenda

Visualize topology, Automatically generate

Automatically recognize the camera, display the topology in a graphical way, simple and clear, making it easy to manage the network and monitor.
Tenda

Easy to use VLAN configuration

VLAN configuration and management modification can be completed on mobile phones and computers, without the need for professional IT technicians to configure the command line
Tenda

Real time alarm for abnormal status

Loop Guard

One click activation of anti loop, automatic detection of port loop, and APP sending alarm information at the same time.

DHCP Snooping

One click activation of private connection, automatically detecting and blocking IP addresses obtained from non uplink ports.

Tenda

Remote restart of the PoE port

One key remote restart PoE, easily solve the abnormal operation of the surveillance camera.
Tenda

Real time viewing of port status

The switch can remotely manage and view port traffic status and other abnormal information.
Tenda

Management In Hands, More Easily

Supports cloud WEB platform management and Profi APP management,remote troubleshooting, ensuring worry free engineering.
Tenda

SPECIFICATIONS

Model G2210P-8-120W
Hardware
Dimensions 177.5mm*104mm*26mm
Mounting Desktop mounting: support
Wall mounting: support
Enclosure material Metal
Interfaces (9)1GE RJ45 ports
(1)1GE SFP ports
PoE interface (8) PoE(Pins 1, 2+; 3, 6-)
LED Indicator Power
Link/Act
PoE MAX
Switching capacity 20Gbps
Forwarding rate 14.9Mpps
Power method 100-240V AC，50 / 60Hz
Power consumption 120W
Total available PoE 110W
Max. PoE wattage per port by PSE 30W
Lightning protection Port: 6 KV
Power：6 KV
Button Factory reset
Operating temperature 0°C – 45℃
Storage temperature -40°C – 70°C
Operating humidity 10% – 90%,non-condensing
Storage humidity 5% – 90%,non-condensing
Certifications FCC, CE, RoHS
Software
PoE Management Support dynamic display of PoE consumption power and PoE remaining power
Support PoE ports on and off
Security features Support whitelist binding of MAC addresses, ports and VLAN
Support port isolation
VLAN Support VLAN transparent transmission
Support IEEE 802.1q VLAN
DHCP Server Support DHCP Client
STP Support loop guard on each port
Port mirroring Support N: 1 port mirroring
QoS Support storm control on ports
Support ingress and egress rate limits on ports
Support port flow control
Cloud Management Support configuration delivery from ProFi Cloud management platform
Support ProFi App management
Support log reporting and fault detection
Support remote maintenance: reboot, backup, upgrade
Loading and upgrade Support HTTP upgrade
Support Configuration import and export
Management and maintenance Support web management and maintenance
Support Ping and Tracert tests
Support VCT
