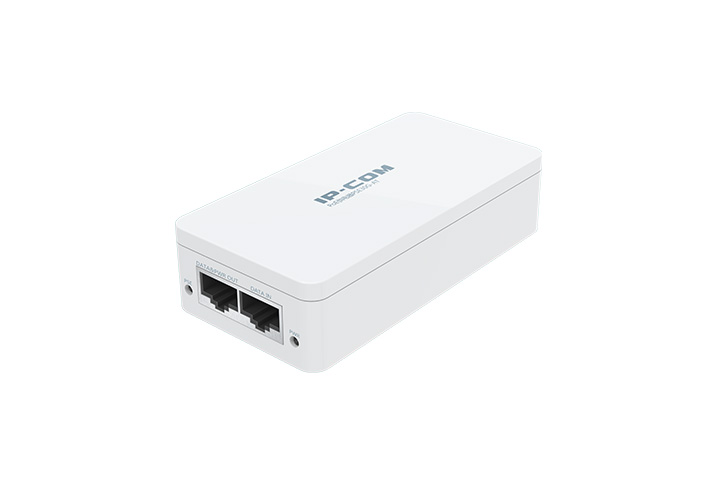

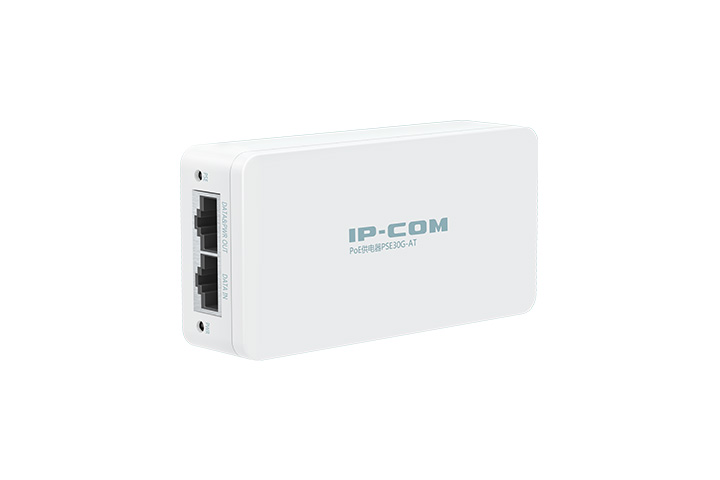

PSE30G-AT Overview
The PoE injector PSE30G-AT can directly provide dc power to equipment which need power supply, plug and play, convenient for network construction, Date&Power Out port maximum output power of 30 w. PSE30G-AT can auto-start short-circuit function to cut off power supply when meet too high current or electricity interruption, to prevent equipment burnout and avoid networking failure caused by electricity interruption or installing error. This function make PSE30G-AT can be widely applied to wireless network devices, bluetooth, IP-telephone which compliant with IEEE802.3af/at. Matched with Ethernet/Power separator to change the current networking into source LAN, easy management, strengthen controlling and decrease the maintenance cost.
PoE Feature:
● Support IEEE802.3af、IEEE802.3at standard
● Auto-detects and provide power supply to PD equipment which compliant with IEEE802.3af、at standard
● Power consumption one port up to 30W
Interface Features:
● Compliant with IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3af,IEEE802.3at Ethernet standard
● 2 RJ-45 Gigabit ports support 10/100/1000Mbps connecting rate
● Date&Power Out port support PoE
Product Features:
● Integrated design and easy installation
● Plug and play, no need to setup
● GE transmission rate for wide use
Fireproofing Features:
● Fireproofing level of case up to 94V0
SPECIFICATIONS
Standard and protocol supported | Compatible with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af , IEEE802.3atStandard CSMA/CD, TCP/IP |
Features | Support the powered devices compatible with IEEE802.3af、IEEE802.3at Standard Transmission range up to 100M Power output can be matched automatically Plug and play |
Port | 1 GE port 1 data&power output port supporting PoE |
Indicators | PWR, PoE |
Dimension(W*D*H) | 131mm*60mm*33mm |
Power output | 30.6W |
Operating temperature | 0℃~40℃ |
Storage temperature | -40℃~70℃ |
Relative humidity(Operational) | 10%~90% (noncondensing) |
Relative humidity(Storage) | 5%~90% (noncondensing) |
